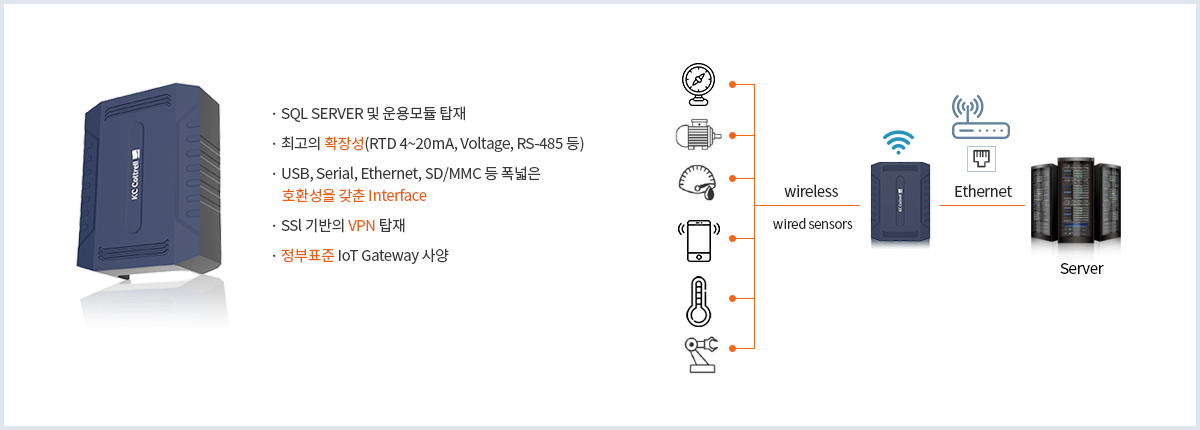

IoT Gateway Solution system diagram
Technology infomation

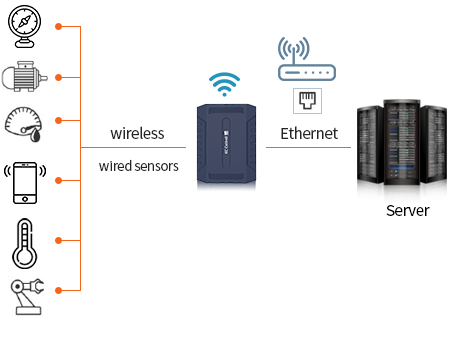

Analog signals are converted to digital to collect on VPN servers and big data collected is used for analysis and control.
아날로그 신호를 디지탈로 변환 후 VPN 서버에 Big Data로 수집, 분석 및 제어관측에 사용
Analog signals are converted to digital to collect on VPN servers and big data collected is used for analysis and control.
아날로그 신호를 디지탈로 변환 후 VPN 서버에 Big Data로 수집, 분석 및 제어관측에 사용
Gateway for Data Collection
Specification
| Gateway | Processor | Sitara AM3359AZCZ100 1GHz, 2000 MIPS |
|---|---|---|
| RAM | SDRAM 512MB DDR 3L 400MHz | |
| Onboard Flash | 4GB, 8bit Embedded MMC | |
| USB 2.0 | Access to USB0, Client mode via miniUSB | |
| Access to USB1, Type A Socket, 500mA LS/FS/HS | ||
| Serial Port | UART0 access via 6 pin 3.3V TTL Header | |
| Ethernet | 10/100, RJ45 | |
| SD/MMC Connector | microSD 16G / 32G | |
| RTD | 2CH | |
| 4~20mA | 2CH | |
| Voltage | 4CH | |
| RS485 | 1CH | |
| VPN | Module | mobile eco ME-i71KL(Qualcomm Solution) |
| External Access | LTE Only | |
| LAN Specification | Two Ethernet 10/100 Base-T RJ 45 plugDHCP Server | |
| NAT(Port Forwarding, DMZ), Firewall(IP Address Filter) | ||
| VPN Pass Through(PPTP, LT2P and IPSe Pass Through) | ||
| Data Rate | FD-LTE / Uplink - 50Mbps / Downlink - 100Mbps | |
| Sensor | Temperature, Pressure, Current, Voltage | |

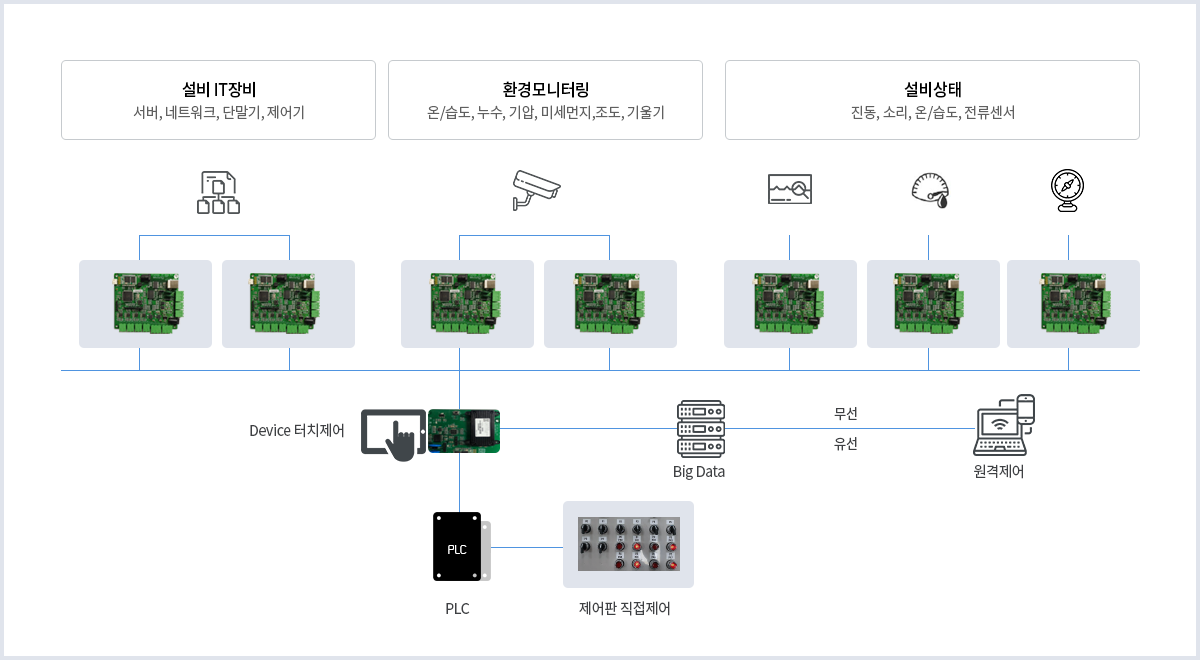

전체 개요도(소규모 사업장 방지시설 설치 지원사업)
